Efficient transfer from 3D scan (point cloud) into 3D CAD

Smap3D ScanToCAD

Smap3D ScanToCAD ensures that designers will now be able to more quickly transfer existing physical surfaces and geometry from 3D scans/point clouds into the CAD, instead of drawing these themselves.

With Smap3D ScanToCAD, mulitple 3D scans can be referenced or the individual scans can be integrated into an overall project. The software transfers the selected 3D geometry directly to SOLIDWORKS and Solid Edge.

Selected standard geometry instead of entire point cloud

The greatest benefit is that, it is not necessary to import the entire point cloud with its high volume of data into the CAD. Instead, the designer transfers selected standard geometry with Smap3D ScanToCAD.

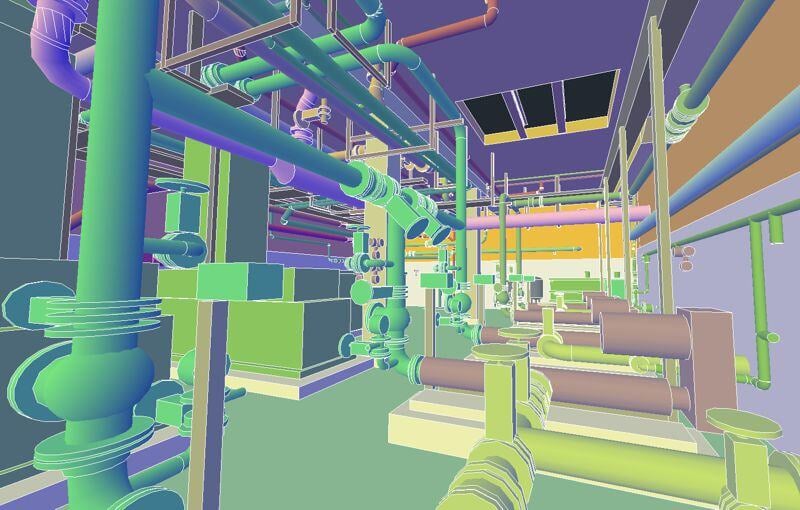

smap3d-scantocad-01

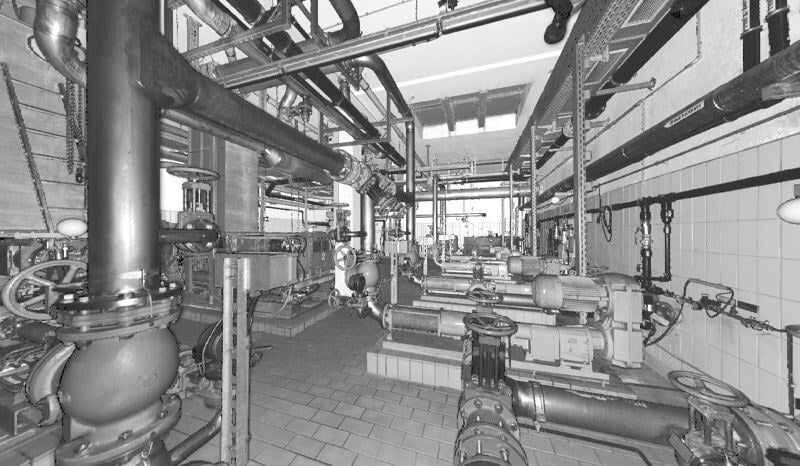

smap3d-scantocad-02

Processing of established formats

If it is not possible to scan the desired objects yourself, a service provider can be used. Smap3D ScanToCAD can read all standard formats (such as ASCII, Faro, Leica, Optech, Riegl, Topcon, Trimble, Zoller and Fröhlich or E57) from the 3D scanner.

Fast response to changes

In each case, Smap3D ScanToCAD assimilates the actual situation for all desired spaces. The advantage to this is that each and every measurement is saved. If changes are made in the design, the designer can access this precise data at any time and transfer it into the 3D CAD. Even if certain dimensions are missing after the measurement, these can be easily and quickly determined by Smap3D ScanToCAD.

Transparent documentation of changes

The free viewer from Smap3D ScanToCAD can make the point cloud available as the as-built and the 3D design as the target status. Changes due to installations or conversions can be transparently tracked and implemented, which represents an increasingly important competitive advantage.
